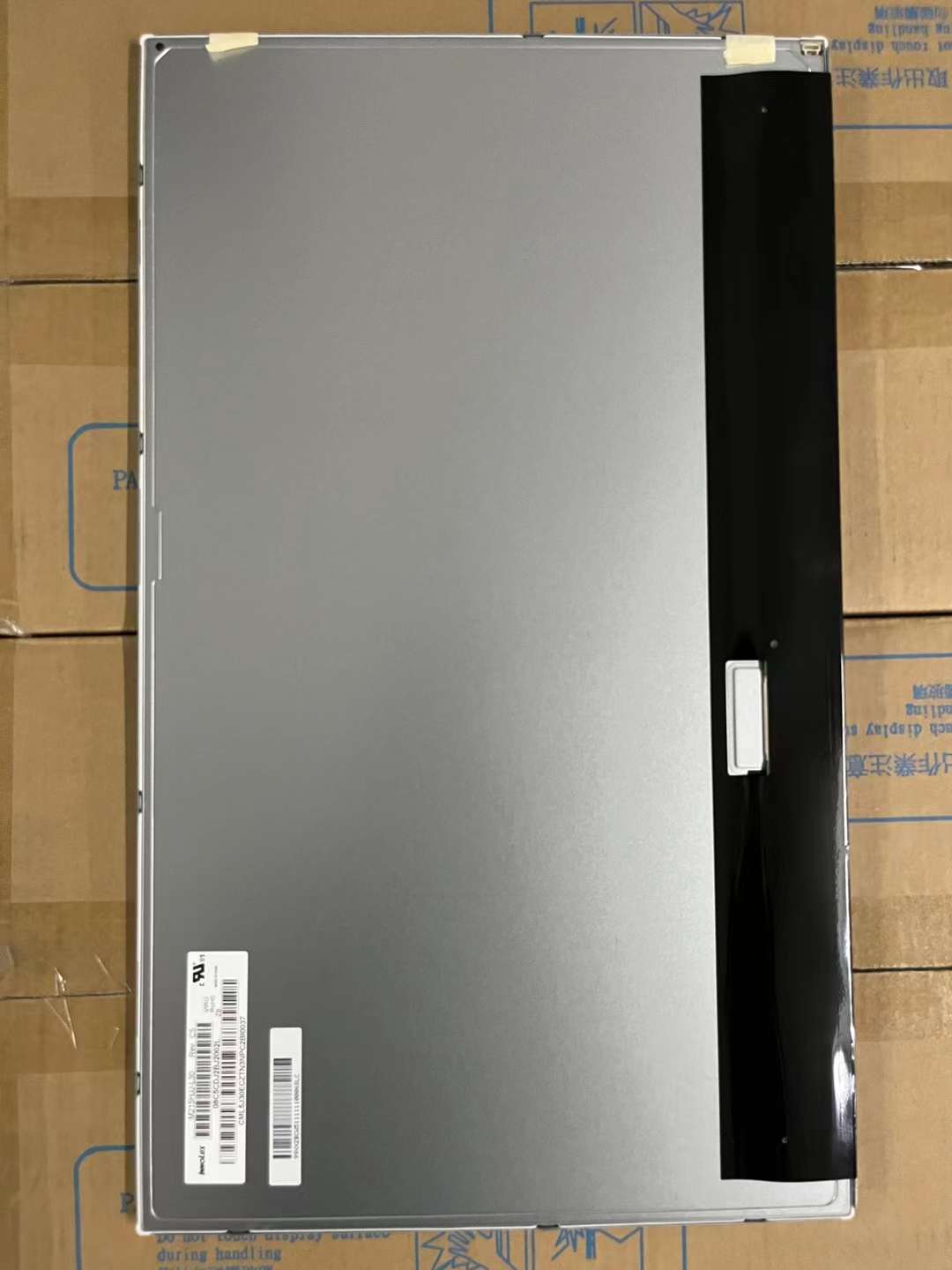

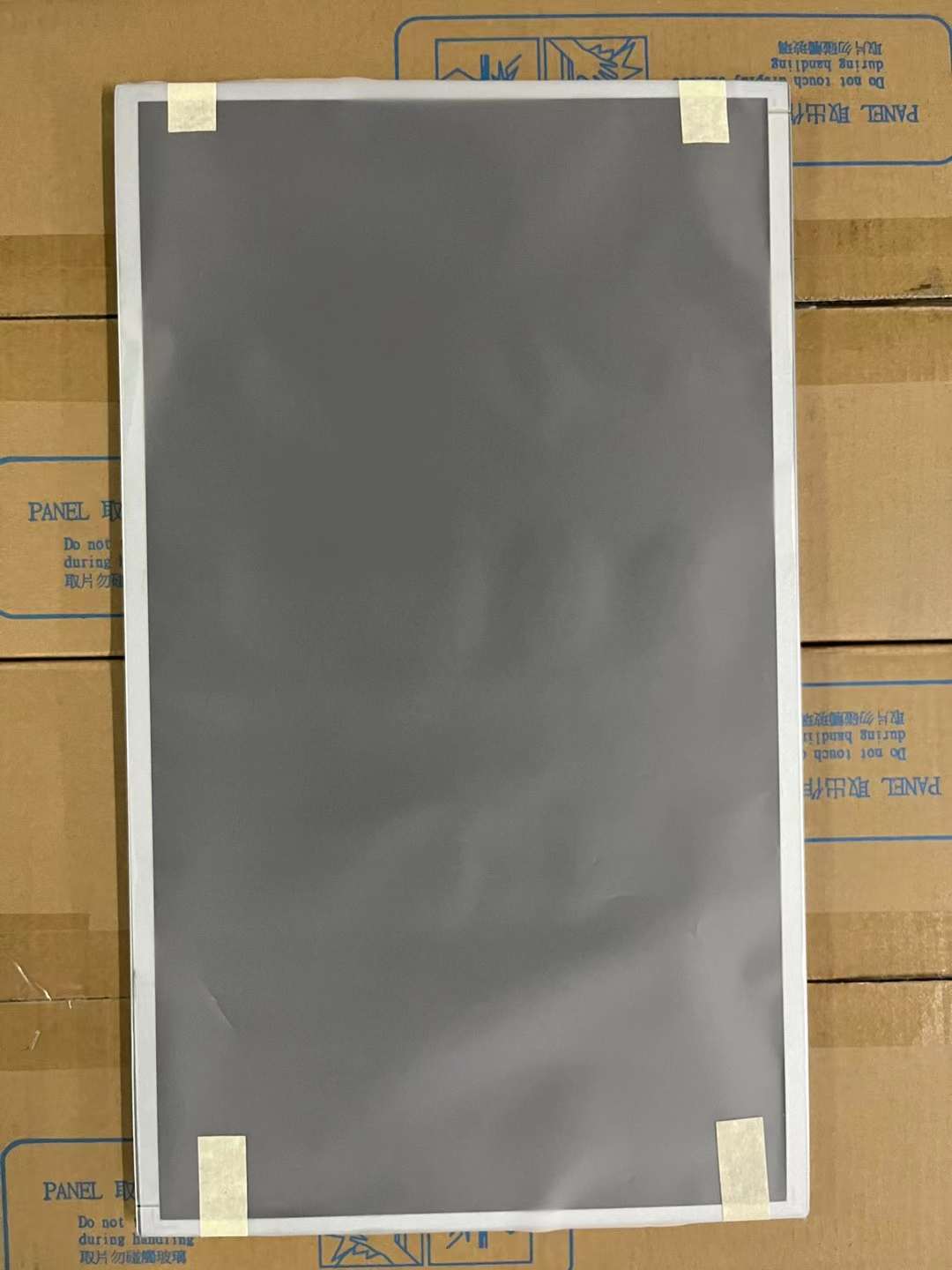

Innolux 21.5Inch Industrial lcd model M215HJJ-L30 1920X1080P 102PPI 250cd/M2 30PIN
M215HJJ-L30 Rev.C5 is a 21.5" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Einklcd in the following: WLED Backlight, Reverse I/F, Matte , TCO 7.0 Compliance. Based on its features, Einklcd recommend that this model be applied to Desktop Monitor, Industrial etc. According to the information stored in Einklcd this model mass production on Q1, 2016 and last shippment on Q1, 2023, Now this model is discontinued. We inputted this model's specification on Oct 24 2017 for the first time, and the latest update on Aug 6 2023. If you want to embed the LCM in your future product, Einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail of M215HJJ-L30 Rev.C5. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:Innolux
Model P/N:M215HJJ-L30 Rev.C5
Compatible Model 4 Compatible
Diagonal Size: 21.5"
Panel Type:a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1080, FHD 102PPI
Pixel FormatRGB Vertical Stripe
Active Area:476.064(W)×267.786(H) mm
Bezel Opening:479.84(W)×271.3(H) mm
Outline (mm):495.6×292.2×11.5 (H×V×D)
Treatment Antiglare (Haze 25%), Hard coating (3H)
Luminance250 cd/m² (Typ.)Contrast Ratio3000 : 1 (Typ.) (TM)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response20/5 (Typ.)(Tr/Td) ms
Good View at Symmetry
Work Mode: MVA, Normally Black, Transmissive
Color Depth:16.7M 72% NTSC
Backlight4 strings WLED , 40K hours , No Driver
Mass1.80/1.89Kgs (Typ./Max.)Used forDesktop Monitor Industrial
Refresh Rate:60Hz 120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC CircuitTouchscreenWithout
Signal Type:LVDS (2 ch, 8-bit) , Connector :30 pins
Voltage Supply5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
