430CCD 40PIN BOE PC LCD Module 10.1 Inch GV101WXM-N85 149PIN 1280x800 Pixels

  • 1
  • 2

Brand Name : BOE

Model Number : GV101WXM-N85

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass

Brightness : 430ccd/m2

Resolution : 1280*800pixels

contrast ratio : 800:1

color : 16.7M

Working life : 15k hours

connector : 40P

Touch panel : without

Contact Now

BOE Technology Group Co., Ltd. (hereafter called BOE) GV101WXM-N85 (Product Code: BOE0950) is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by Einklcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte . Based on its features, Einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in Einklcd this model mass production on Q1, 2021, Now this model is in production.  We inputted this model's specification on Dec 25 2020 for the first time, and the latest update on Nov 11 2022. If you want to embed GV101WXM-N85 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The GV101WXM-N85 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.



  • Brand
  • BOE
  • Model P/N
  • GV101WXM-N85
  • Diagonal Size
  • 10.1"
  • Panel Type
  • a-Si TFT-LCD, LCM
  • Resolution
  • 1280(RGB)×800, WXGA 149PPI
  • Pixel Format
  • RGB Vertical Stripe
  • Active Area
  • 216.96(W)×135.6(H) mm
  • Bezel Opening
  • -
  • Outline Dim.
    228.2(W)×148.85(H)×4.9(D) mm
  • Treatment
    Antiglare (Haze 25%)
  • Luminance
    430 cd/m² (Typ.)
  • Contrast Ratio
    800:1 (Typ.) (TM)
  • View Direction
    Symmetry
  • Response Time
    30 (Typ.)(Tr+Td)
  • Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
  • Operating Mode
    ADS, Normally Black, Transmissive
  • Support Color
    16.7M 48% NTSC
  • Light Source
    WLED , 15K hours , With LED Driver
  • Weight
    250g (Max.)
  • Designed For
    430CCD 40PIN BOE PC LCD Module 10.1 Inch GV101WXM-N85 149PIN 1280x800 Pixels
  • Frame Rate
    60Hz
  • Touch Panel
    Without
  • Interface Type
  • LVDS (1 ch, 8-bit) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector
  • Power Supply
  • 3.3V (Typ.)
  • Environment
  • Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C

430CCD 40PIN BOE PC LCD Module 10.1 Inch GV101WXM-N85 149PIN 1280x800 Pixels






Product Tags:

430CCD PC LCD Module



FCC PC LCD Module



149PIN TFT LCD Display Panel


Buy cheap 430CCD 40PIN BOE PC LCD Module 10.1 Inch GV101WXM-N85 149PIN 1280x800 Pixels product

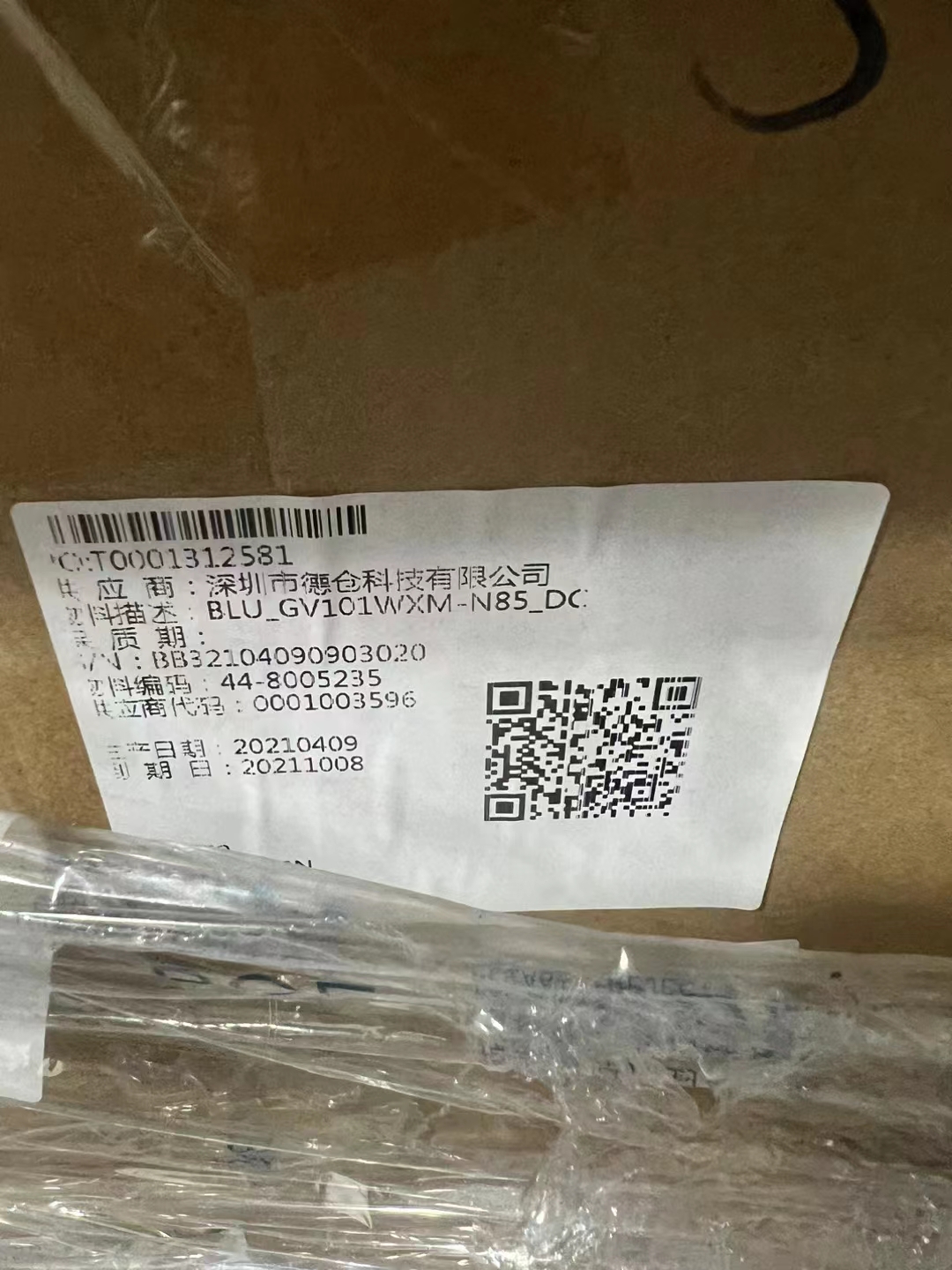

430CCD 40PIN BOE PC LCD Module 10.1 Inch GV101WXM-N85 149PIN 1280x800 Pixels Images
