Sharp 10.4Inch Industrial lcd model LQ104S1DG21 800X400P 96PPI 350cd/M2 41PIN

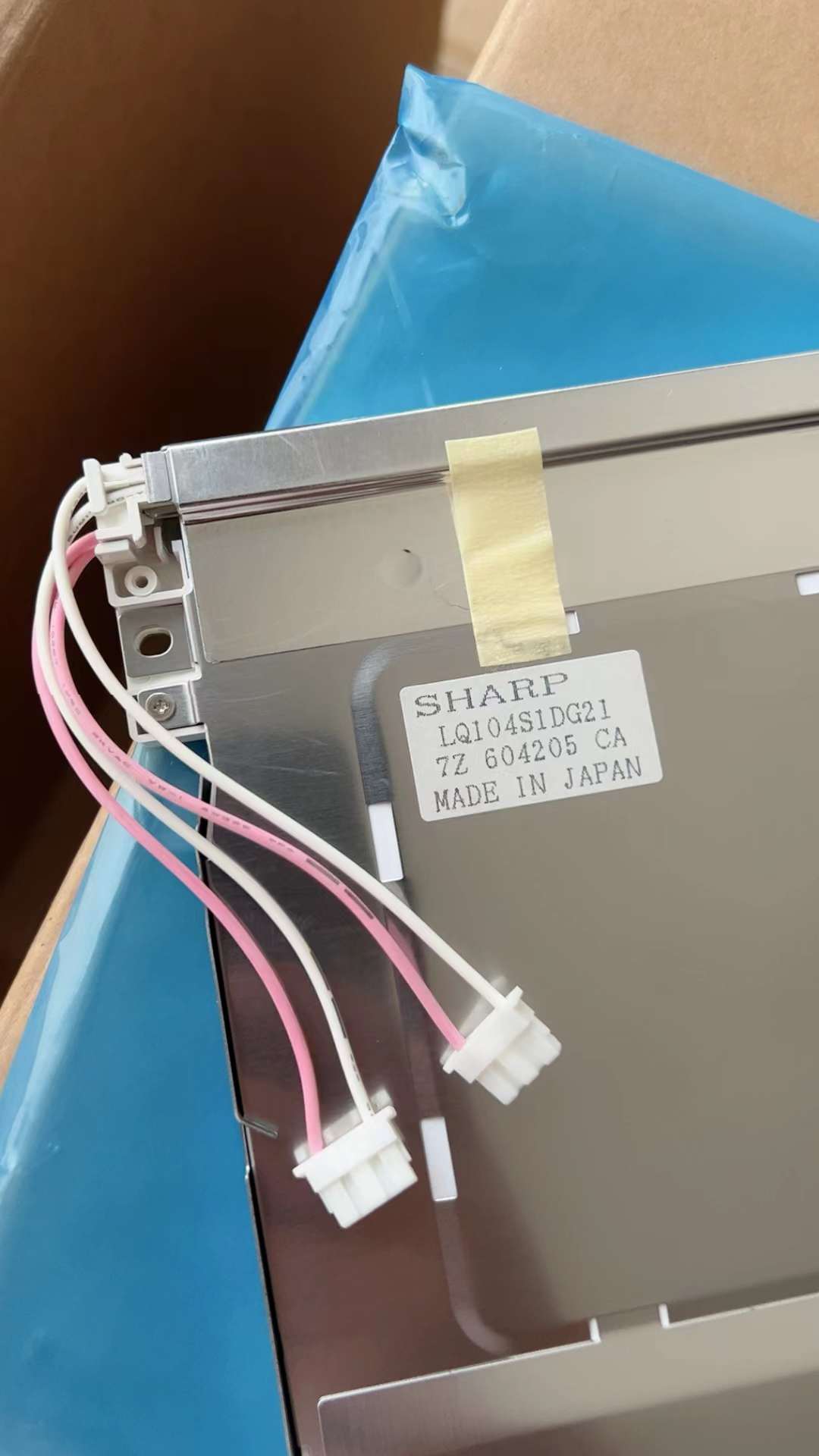

LQ104S1DG21
is a 10.4"
diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by einlcd in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte , LAST SHIP DATE:8 July 2011. Based on its features, einklcd recommend that this model be applied to Industrial
etc. According to the information stored in einklcd this model mass production on Q2, 2003 and last shippment on Q3, 2011, Now this model is discontinued. We inputted this model's specification on Aug 23 2012 for the first time, and the latest update on Aug 11 2023. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Sharp or it's agent to learn lateast production and specification detail of LQ104S1DG21. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand: Sharp
Model P/N: LQ104S1DG21
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 96PPI
Pixel Format: RGB Vertical Stripe
Active Area: 211.2(W)×158.4(H) mm
Bezel Opening: 214.6(W)×162.4(H) mm
Outline Dim.246.5(H)×179.4(V) ×15.5(D) mm
Treatment Anti glare, Hard coating (3H), Anti reflection
Luminance: 350 cd/m² (Typ.)
Contrast Ratio: 300:1 (Typ.) (TM)
View Direction: 6 o'clock
Response Time10/25 (Typ.)(Tr/Td)
Viewing Angle70/70/40/70 (Typ.)(CR≥10) Left / Right / Up / DownOperating ModeTN, Normally White, Transmissive
Support Color262K Light SourceCCFL [2 pcs] , 50K hours , W/O Driver
Weight: 620g (Max.)
Designed For Industrial
Frame Rate-Touch Panel Without
Interface TypeCMOS (1 ch, 6-bit) , 41 pins Connector
Power Supply3.3/5.0V (Typ.)(VCC)
Environment Operating Temperature: -10 ~ 65 °C ;
Storage Temperature: -30 ~ 70 °C
