250cd/M2 AUO 24" Laptop Lcd Screen 91PPI 1920(RGB)×1080 FHD 30PIN 5.0V M240HTN01.2 Desktop monitor
M240HTN01.2 is a 24.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Upside I/F, Matte , TCO 6.0 Compliance. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q3, 2012, Now this model is in production. We inputted this model's specification on Oct 26 2013 for the first time, and the latest update on Nov 10 2020. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of M240HTN01.2. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Panel Brand AUO
Panel Model M240HTN01.2
Panel Size 24.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD, 91PPI
Pixel Format RGB Vertical
Stripe Display Area 531.36(W)×298.89(H) mm
Bezel Opening 535.4(W)×303.0(H) mm
Outline Size 556(W)×323.2(H) ×12(D) mm
Surface Antiglare, Hard coating (3H)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock
Response Time 3.5/1.5 (Typ.)(Tr/Td)
Display Colors 16.7M 72% NTSC
Lamp Type 9S4P WLED , 30K hours , Without Driver
Frequency 60Hz Touch Screen Without Panel
Weight 1.89Kgs (Typ.)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 5.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Product Tags:
|
|

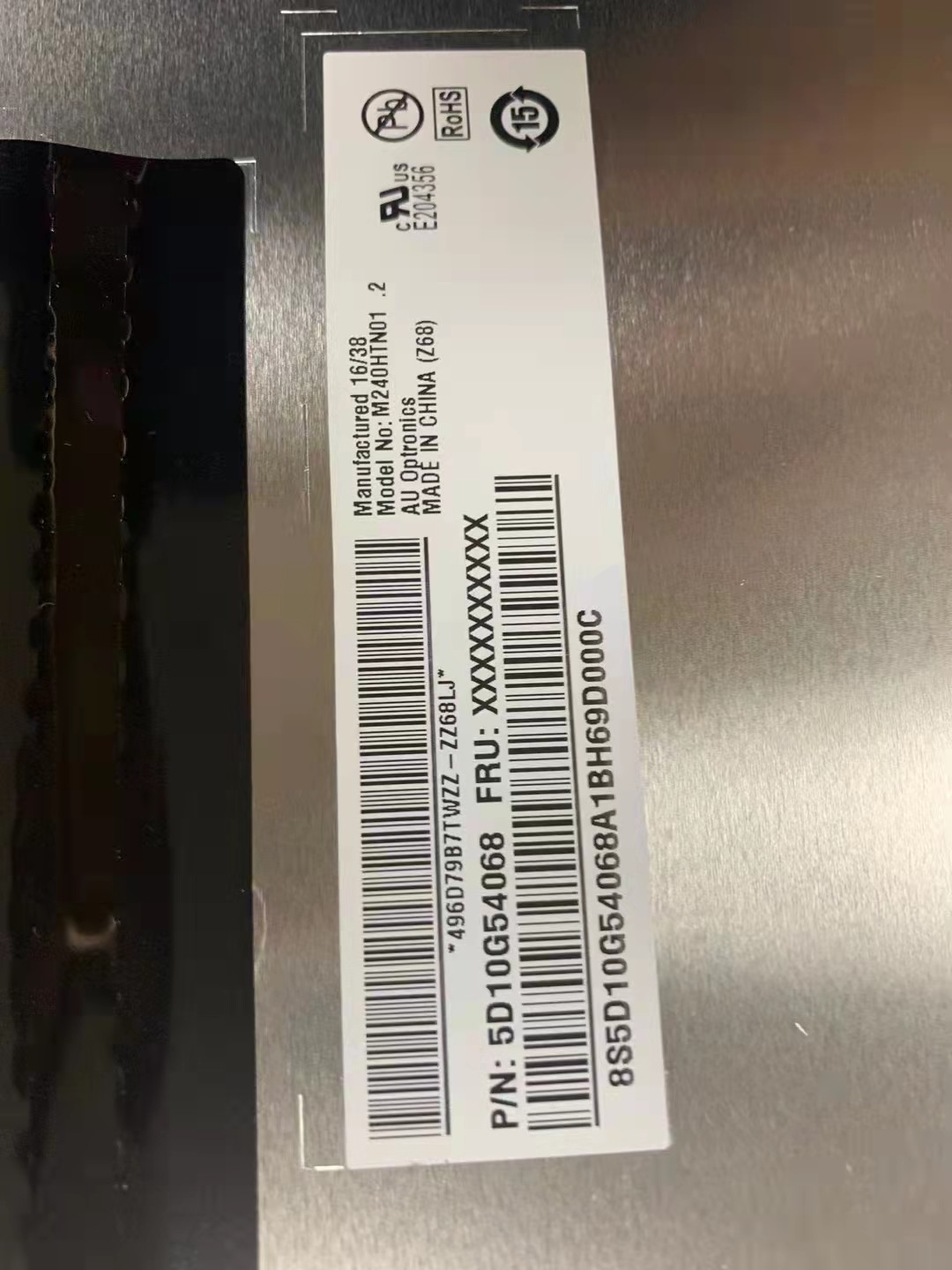

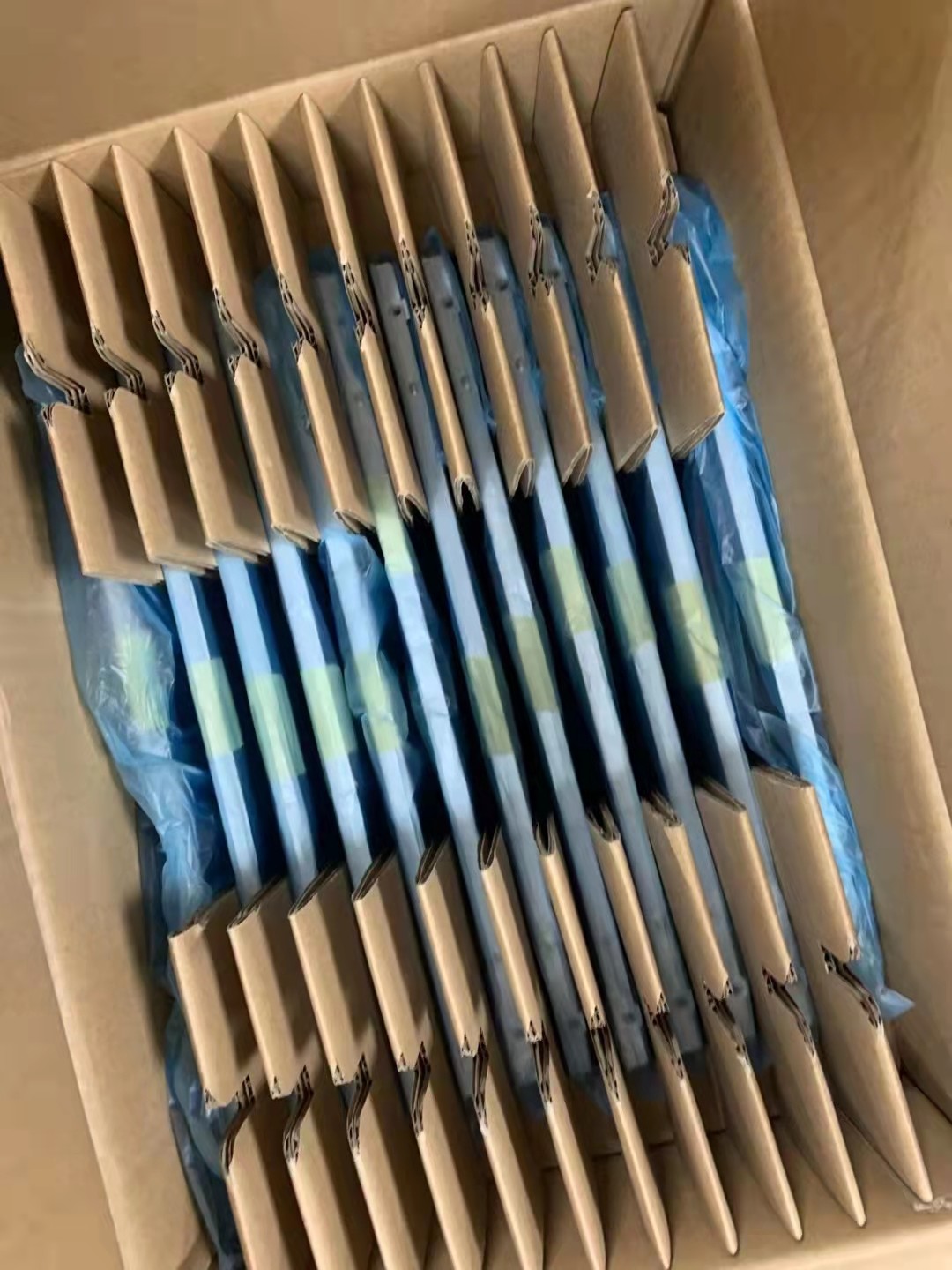

91PPI Desktop LCD Monitor Glass Oled AUO 24" 30 PIN 5.0V M240HTN01.2 Images
|
