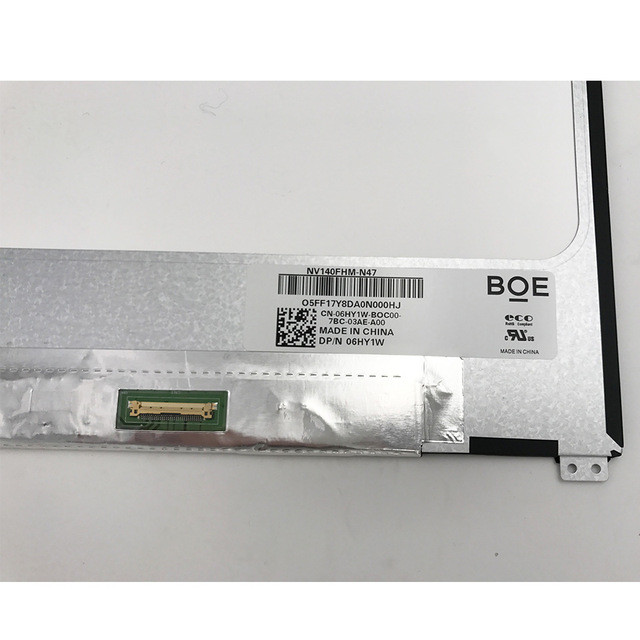

30 Pin IPS Full Hd Touch Screen Monitor BOE 14 Inch 1920*1080 Pixels NV140FHM-N47

Product Categories

Industrial LCD Display [168]
LCD Touch Screen Monitor [13]
Widescreen LCD Computer Monitors [82]
PC LCD Module [97]
Large LCD Display Screen [23]
LCD TV Panel [24]
Stretched LCD Display [17]
Car LCD Display [42]
E Ink Display Module [44]
E Ink LCD Display [21]
Medical LCD Panel [1]

FOCUS VISION TECHNOLOGY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

30 Pin IPS Full Hd Touch Screen Monitor BOE 14 Inch 1920*1080 Pixels NV140FHM-N47

Brand Name : BOE

Model Number : NV140FHM-N47

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

resolution : 1920*1080

style : 30PIN IPS

brightness : 300 CD/M2

color : 262K

contrast ratio : 700 :1

Contact Now

Manufacturer
BOE
Model Name
NV140FHM-N47 (BOE06EE)

Screen Size
14.0 inch
Screen TypeLCM, a-Si TFT-LCD

Pixel Number1920(RGB)×1080 (FHD)
ArrangementRGB Vertical Stripe

Active Area(mm)309.31 × 173.99 (H×V)
Outline(mm)320.4 × 194.65 × 5.25 (H×V×D)

Bezel Area(mm)-
TreatmentAntiglare, Hard coating (3H)

Luminance300 cd/m² (Typ.)
Contrast Ratio700 : 1 (Typ.) (TM)

Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Response30 (Typ.)(Tr+Td) ms

Good View atSymmetry
Work ModeADS, Normally Black, Transmissive

Color Depth262K 72% (CIE1931)
Backlight10S4P WLED , 15K hours , With LED Driver

Outline ShapeSlim (PCBA Bent, Depth ≤3.0mm)
Used for

Refresh Rate60Hz
TouchscreenWithout

Signal Type
eDP (2 Lanes) , Connector , 30 pins

Voltage Supply
3.3V (Typ.)

Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

All Origianl product will be send to customer after full test one by one.

Spec details can be send to you via email,please contact us.
